The BDS basic program. The professional user will find the greatest possible program depth here. The BDS core drill series HSS-Standard has a long service life and heat resistance due to the use of high-performance steel. The tools of this all-around series are characterized by drilling without great effort…
The goal of this latest BDS product development was a performance-optimized core drill series with higher heat resistance and better wear protection. An increased cobalt content in special steel brought the desired results. In conjunction with speed-controlled BDS magnetic core drilling machines, these core drills are suitable for higher loads in fine-grained steels and stainless materials. The core drills can be reground, they retain their positive product properties.

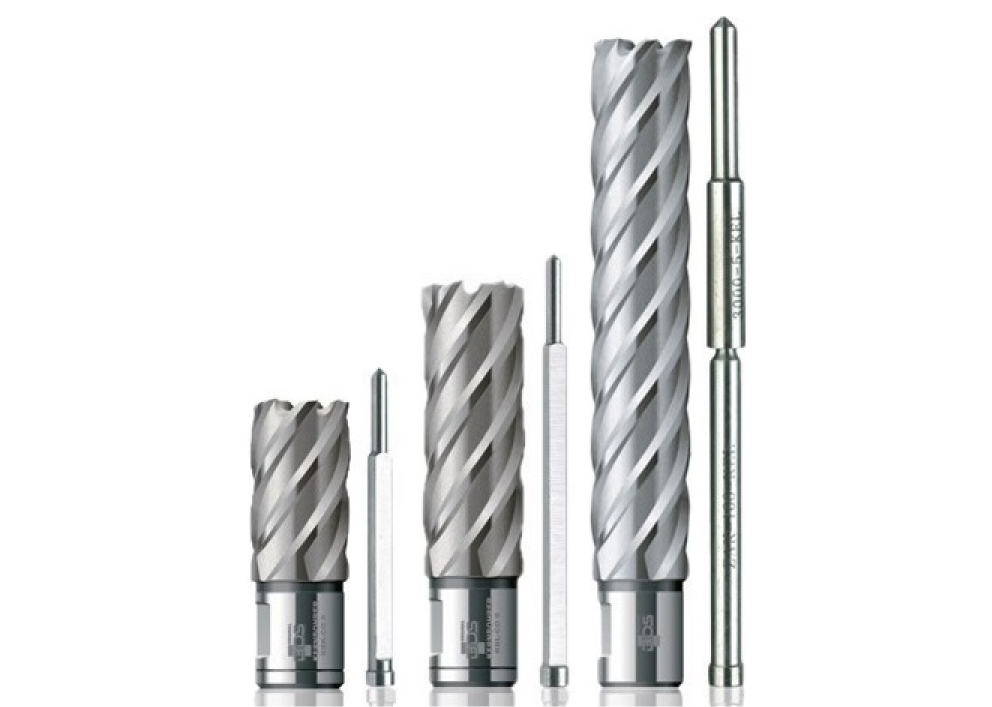

HSS Standard Annular Cutters
1,108.80 ₹ – 22,664.60 ₹
The standard core drill range for professional use. Fully ground core drill (annular cutters) made from high-performance high-speed steel on CNC-controlled grinding centers, with the good discharge of chips. Drilling with minimal effort. For working on a horizontal plane, BDS recommends the BDS 5200 high-performance lubrication spray.
- Annular cutters with three different cutting depths: 30 mm, 55 mm and 110 mm
- Core drilling diameters of 12 mm to 130 mm
- Better wear protection
- Longer service life, less aggressive while drilling, requires optimum cutting oil
- Fully ground special geometry
- Full flute geometry for good removal of chips while drilling deep holes
- Can be easily resharpened
- Made in Germany
Please select cutting depth and diameter of the cutter.
| Cutting Depth (in mm) | 30 mm, 55 mm, 110 mm |
|---|---|
| Diameter (in mm) | 12, 13, 14, 15, 16, 17, 17.5, 18, 19, 19.5, 20, 20.50, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 115, 116, 117, 118, 119, 120, 125, 130 |
Parth Rathod –
The most sold annular cutters worldwide. This is the best choice of cutter for your everyday drilling needs.
